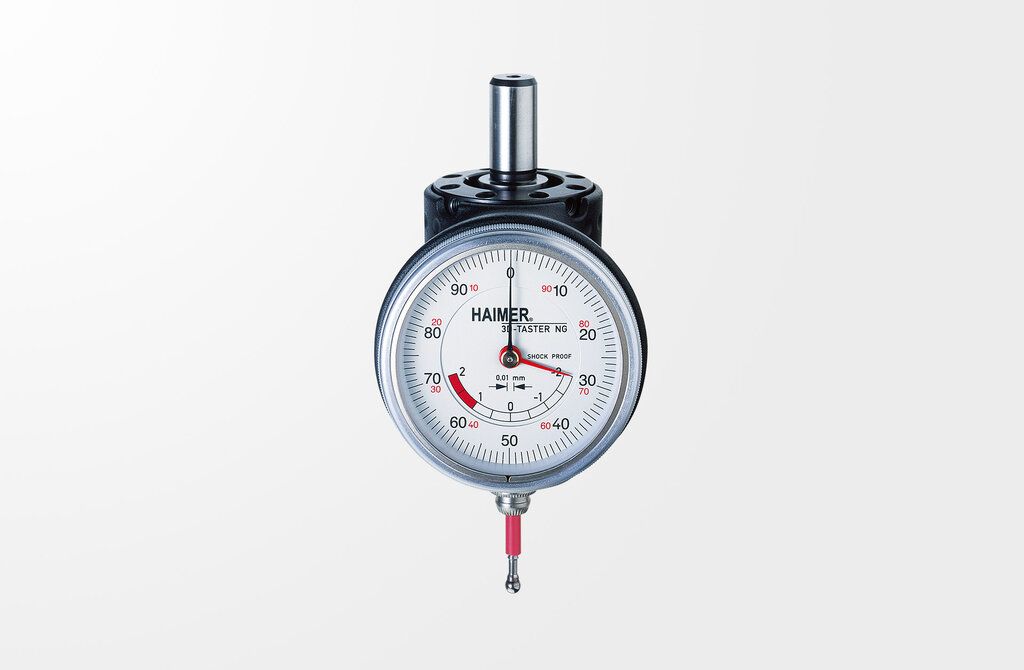

The Haimer 3D-Sensor New Generation is a further development of the worldwide accepted and proven Universal 3D-Sensor. Its distinguishing features are improved mechanics and a new and compact design.
Advantages:
- Compact and easy to grip casing, no restriction to working area
- Precise display of spindle position with large 1/100 mm dial gauge (2 hands)
- Utmost precision of 0.01 mm
- Marked overrun distance (safety distance)
- IP 67 waterproof
Functions:
- Aligning machine spindles to work piece edges and reference edges (X-, Y-, Z-axis)
- Set zeros
- Centre borings and shafts
- Measuring lengths and depths
- Checking straightness and levelness of surfaces
- Aligning work pieces and vices
- Quick, without calculations, no mistakes with algebraic signs
Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.
Included in delivery: 3D-Sensor New Generation with clamping shank Ø 12 mm, short probe tip Ø 4 mm
Technical data subject to change without prior notice.

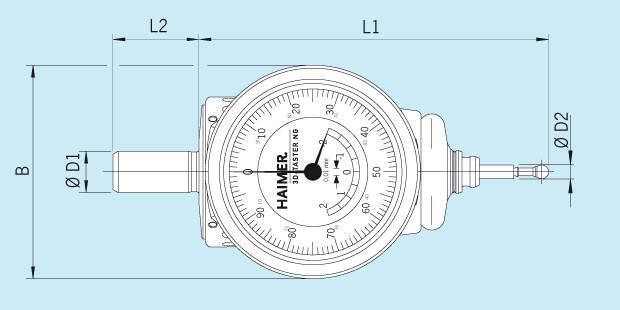

Technical Data:
L1 [mm] 101
L2 [mm] 25
Ø D1 [mm] 12
Ø D2 [mm] 4
B [mm] 62
Smallest unit of measure [mm] 0.01
