Haimer 3D-Sensor New Generation with integrated BT30 adapter

Haimer 3D-Sensor New Generation with integrated BT30 adapter

R11,950.00 R13,742.50 incl. VAT

  • Exact positioning of the spindle axis on the edges of the workpiece
  • Compact design
  • Integrated BT30 shank
  • Smallest unit of measure of 0,01 mm
  • Replaceable probes for maximum flexibility
  • IP 67 waterproof
  • Product Code: 80.365.30NG

Price includes VAT

Only 1 left in stock (can be backordered)

SKU: 80.365.30NG Category:

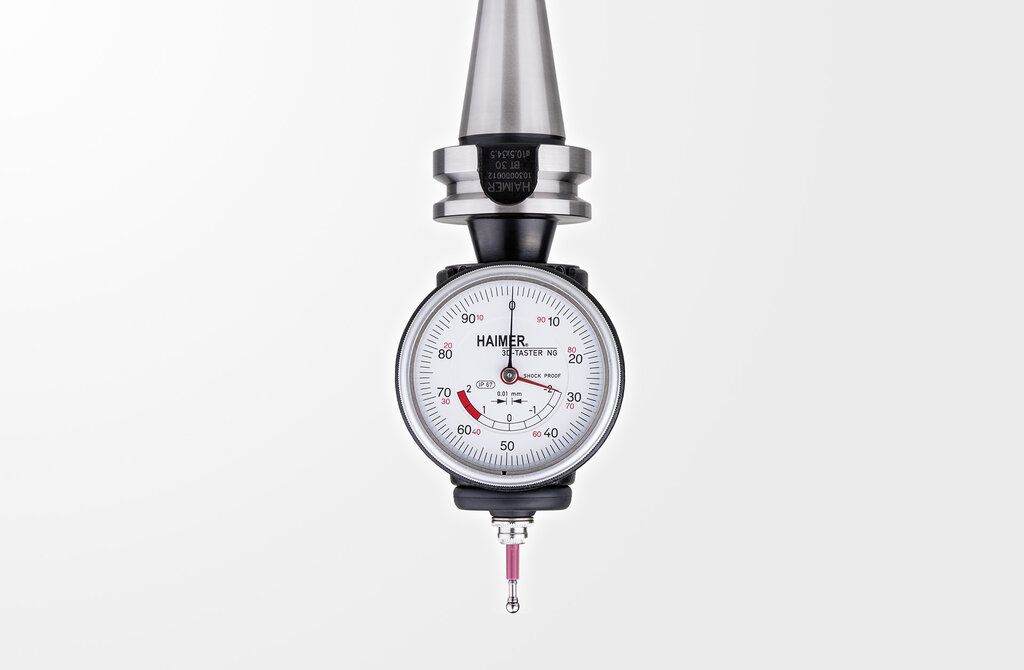

The 3D-Sensor New Generation is a further development of the worldwide accepted and proven Universal 3D-Sensor. Its distinguishing features are improved mechanics and a new and compact design. In combination with the integrated short adapters – available in SK 30, BT 30, HSK-25/32/40/50/63 – it is the ideal solution for small milling and EDM machines.

Version:

  • With integrated short adapter in version SK30, BT30, HSK-25/32/40/50/63
  • Utmost precision of 0.01 mm
  • Enhanced overrun distance
  • IP 67 waterproof


Application:

  • For small Milling and EDM machines (isolated probe)
  • For workpiece-reset and length measuring
  • Any direction approach (X-, Y-, Z-axis)

Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.

Included in delivery: 3D-Sensor New Generation with integrated short adapter, short probe tip Ø 4 mm

Technical data subject to change without prior notice.

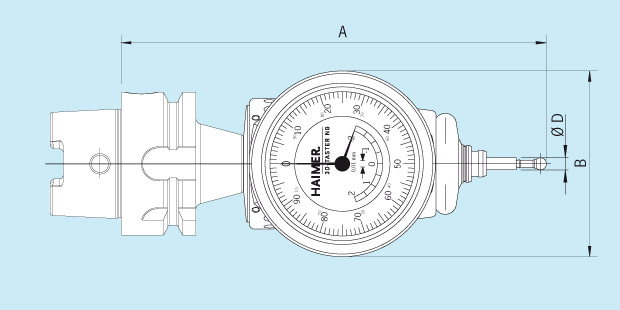

Technical Data:

A [mm] 138,5
Ø D [mm] 4
B [mm] 62
Smallest unit of measure [mm] 0,01
