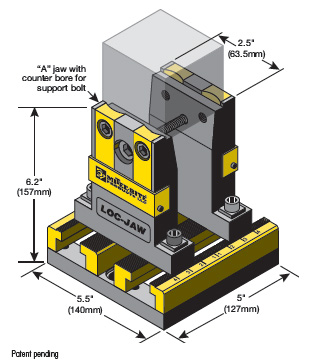

The Loc-Jaw® system was conceived to simplify, and allow greater tooling access and more versatility securing your parts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.
- Unique design allows access to bottom of workpiece
- Ability to hold parts from .500″ to 4.00″ or up to 1 Meter with optional extension kit
- 6,000+ lbs of holding force gripping on only .125″ of material
- Knife-Edge grippers designed to penetrate into material up to .060″ deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2.
- Centering Disk included for Loc-Jaw® base
- Set of locating pins included. (Liners installed in base)
- Blunt-edge grippers with #2 or #3 grit carbinite coating are recommended for high speed machining on hard alloys
| Part Number |
Description | |
|---|---|---|
| 14500 | Loc-Jaw® System Ships fully assembled with all tools required |
|
| 14525 | Loc-Jaw® Extension Kit Includes base plate with rails, threaded rod 1 meter long, and locking nut with spacer |

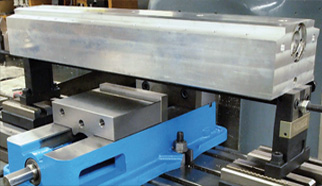

Using extension kit
