Long Length Uniforce Channel & Steel Wedge
R987.00 – R9,498.00Price range: R987.00 through R9,498.00
Price Excludes VAT

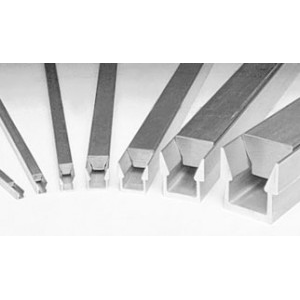

Uniforce Clamps consist of a steel wedge and 7075-T6 aluminium channel
Backordered Mitee Bite items are delivered in 5 to 10 working days
For CAD models click HERE
This material is available in 20″ (508mm) lengths so clamps can be fabricated in different lengths to suit any requirement. Channel and steel wedge are not drilled or plated.
Metric
| Model |
|
A |
B |
B1 |
C |
D* |
E |
F† |
Thread
Size |
Maximum
Spread |
Max.
Torque
(N.m.) |
Holding
Force(N) |
Key
Size |
| 250 |
|
6.1 |
6.9 |
6.4 |
8.1 |
5.3 |
3.6 |
6.4 |
M2 |
6.7 |
0.70 |
880 |
1.5 |
| 375 |
|
9.1 |
9.7 |
9.5 |
11.9 |
7.9 |
4.7 |
9.5 |
M2.5 |
10.0 |
1.50 |
1350 |
2 |
| 500 |
|
12.3 |
14.5 |
12.70 |
15.9 |
10.4 |
5.6 |
12.7 |
M4 |
13.2 |
3.40 |
2225 |
3 |
| 750 |
|
18.6 |
19.0 |
19.05 |
23.8 |
16.1 |
9.5 |
19.0 |
M6 |
20.3 |
13.50 |
6675 |
5 |
| 1000 |
|
24.8 |
25.9 |
25.40 |
31.7 |
20.8 |
12.7 |
25.4 |
M8 |
26.9 |
25.00 |
11125 |
6 |
| 1500 |
|
37.3 |
38.6 |
38.10 |
47.6 |
30.8 |
19.0 |
38.1 |
M12 |
39.9 |
38.40 |
15575 |
10 |
| 2000 |
|
49.7 |
51.5 |
50.80 |
63.5 |
41.2 |
25.4 |
50.8 |
M16 |
53.0 |
74.60 |
26700 |
14 |
|
D* – A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F† The distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
| Part Number |
|
Model |
| 62010 |
|
250 Channel |
| 63010 |
|
250 Steel |
| 62020 |
|
375 Channel |
| 63020 |
|
375 Steel |
| 62120 |
|
500 Channel |
| 63120 |
|
500 Steel |
| 62220 |
|
750 Channel |
| 63220 |
|
750 Steel |
| 62320 |
|
1000 Channel |
| 63320 |
|
1000 Steel |
| 62420 |
|
1500 Channel |
| 63420 |
|
1500 Steel |
| 62520 |
|
2000 Channel |
| 63520 |
|
2000 Steel |
|
