Machinable Uniforce Clamps

Machinable Uniforce Clamps

Price range: R490.00 through R4,101.00

Price Excludes VAT

Machinable Uniforce Clamps consist of a steel wedge and 7075-T6 aluminium channel and are supplied with or without locking plate

Backordered Mitee Bite items are delivered in 5 to 10 working days

For CAD models click HERE

SKU: N/A Category:

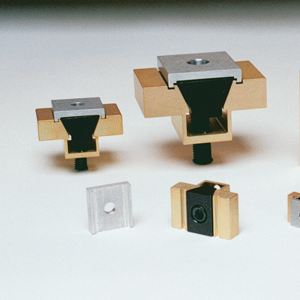

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece – enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.

A unique locking plate properly expands the clamp while making it rigid for machining the jaws to your specifications, without vibration. Remove locking plate before clamping workpiece. Available in five sizes.

Now you can hold those round and unusual shape parts with ease. This compact workholding will allow more parts per load at a lower price than vise soft jaws.

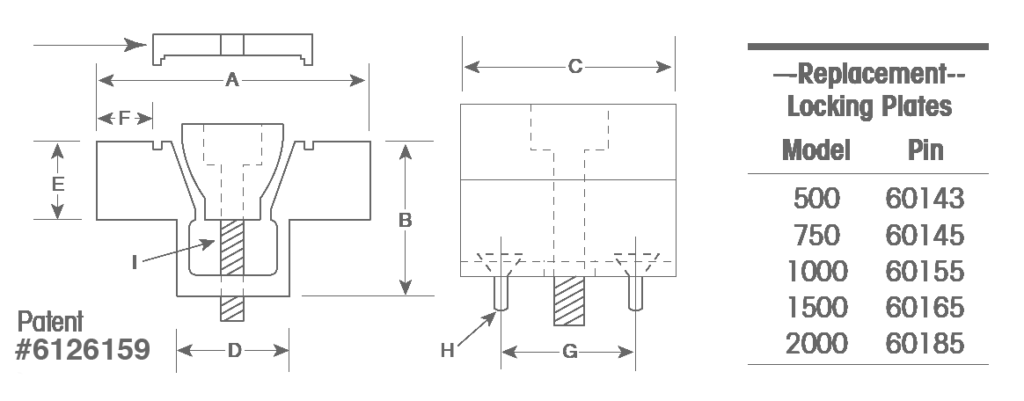

Metric

Model Part No.
with
Locking Plate		 Part No.
without
Locking Plate		 A* B C D E F† G H** I Max
Torque
(N.m.)		 Holding
Force
(N.)		 Replacement
Steel		 Replacement
Channel
500 80050 80055 28.6 12.7 15.7 10.67 6.3 4.6 10.16 M2 M4 3.40 2225 60310 60140
750 80075 80080 38.1 19.1 23.9 16.05 9.4 6.6 15.87 M4 M6 14.30 6675 60320 60125
1000 80100 80105 50.8 25.4 31.8 20.83 12.7 9.9 20.62 M4 M8 14.50 8900 60330 60135
1500 80150 80155 76.2 38.1 47.5 30.86 19.1 15.7 30.48 M5 M12 38.40 15575 60340 60160
2000 80200 80205 101.6 50.8 63.5 41.28 25.4 20.3 41.28 M6 M16 74.60 26700 60350 60180
A* The distance needed between workpieces for clamp clearance, drill and tap mounting holes at center of “A” dimension.
F† The amount of machinable stock on jaws.
H** Mounting Screws included.

Additional information

Code

MI80105 Machinable Uniforce Clamp 1000 no LP, MI80150 Machinable Uniforce Clamp 1500 w/LP, MI80155 Machinable Unifroce Clamp 1500 no L/P, MI80200 Machinable Uniforce Clamp 2000 w/LP, MI80205 Machinable Uniforce Clamp 2000 no L/P, MI80050 Machinable Uniforce Clamp 500 w/LP, MI80055 Machinable Uniforce Clamp 500 no L/P, MI80075 Machinable Uniforce Clamp 750 w/LP, MI80080 Machinable Uniforce Clamp 750 no LP, MI80100 Machinable Uniforce Clamp 1000 w/LP
