Multi-Fixture Clamps and Stops

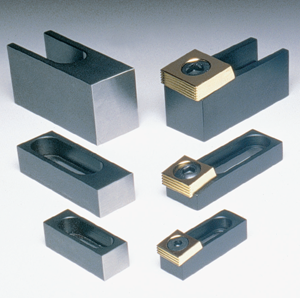

The MITEE-BITE Multi-Fixture Clamp offers increased versatility through its unique riser clamp design.
- Provides flexible set ups for hard to hold parts
- Works in both plates with tapped hole layouts or T-slot configurations.
- Can be mounted vertically or horizontally.
- Stops locate workpiece for repeat positioning.
- Larger sizes are ideal for mold shop applications.
- Tapered mounting slot prevents movement when clamping pressure is applied.
- Steps, as well as end faces of flat stops, are precision ground.
MITEE-BITE also offers clamps and stops without a rest pad. These are designed for contacting a part at a higher point when the workpiece is resting on the table.
Metric
| Part No. | Item | A | B | C | D | E | F | G | Cam Screw H* |
Max Torque (N.m) |
Holding Force (N.) |
Mtg. Screw |
Slot | Replacement Square Washer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WITH STEPS | ||||||||||||||
| 53140 | Clamp | 63.5 | 19.1 | 15.8 | 11.68 | 8.0 | 21.1 | 13.5 | 50368 | 28.00 | 8900 | M8 | Closed | 21006 |
| 23180 | Stop | 63.5 | 19.1 | 19.1 | 11.68 | 8.0 | 28.2 | 13.5 | N/A | 28.00 | 8900 | M8 | Closed | |
| 53150 | Clamp | 95.3 | 28.5 | 15.8 | 12.19 | 9.4 | 42.7 | 12.7 | 50372 | 88.00 | 17800 | M12 | Closed | 51016 |
| 23200 | Stop | 95.3 | 28.5 | 22.1 | 12.19 | 9.4 | 42.7 | 12.7 | N/A | 88.00 | 17800 | M12 | Closed | |
| 53170 | Clamp | 107.0 | 38.1 | 41.2 | 35.00 | 9.4 | 46.2 | N/A | 50373 | 135.00 | 26700 | M16 | Open | 21026 |
| 23240 | Stop | 107.0 | 38.1 | 50.8 | 35.00 | 9.4 | 46.2 | N/A | N/A | 135.00 | 26700 | M16 | Open | |
| WITHOUT STEPS | ||||||||||||||
| 53145 | Clamp | 54.9 | 19.1 | 15.8 | N/A | N/A | 21.1 | 13.5 | 50368 | 28.00 | 8900 | M8 | Closed | 21006 |
| 23148 | Stop | 55.9 | 19.1 | 19.1 | N/A | N/A | 28.2 | 13.5 | N/A | 28.00 | 8900 | M8 | Closed | |
| 53155 | Clamp | 85.6 | 28.5 | 15.8 | N/A | N/A | 42.7 | 12.7 | 50372 | 88.00 | 17800 | M12 | Closed | 51016 |
| 23158 | Stop | 83.5 | 28.5 | 22.1 | N/A | N/A | 42.7 | 12.7 | N/A | 88.00 | 17800 | M12 | Closed | |
| 53172 | Clamp | 96.5 | 38.1 | 41.2 | N/A | N/A | 46.2 | N/A | 50373 | 135.00 | 26700 | M16 | Open | 21026 |
| 23178 | Stop | 83.8 | 38.1 | 50.8 | N/A | N/A | 46.2 | N/A | N/A | 135.00 | 26700 | M16 | Open |
