Description

RWP-006 is a 7075-T6511 Aluminum 2.25″ Dovetail fixture.

Workpiece Size Minimum: 5.95″ long x 3.96″ wide x .50″ high

Workpiece Size Maximum: 8.0″ x 10.0″ x 10.0″ (80 lb max)

Clamp Replacement Kit: RWP-KIT-303SQ (Clamp Material is 17-4 Stainless Steel)

Dovetail Width: 2.25″

Dovetail thickness: 0.1875″

Fixture Dimensions: 5.950″ long x 3.957″ wide x 2.500″ high

Bolt Circle Diameter: 3.800″ (Raptor Interface)

Piranha Zero-Point Adaptable: Yes (Order 4 pc kit # 540277)

Recommended Cutter: RWP-DC410C

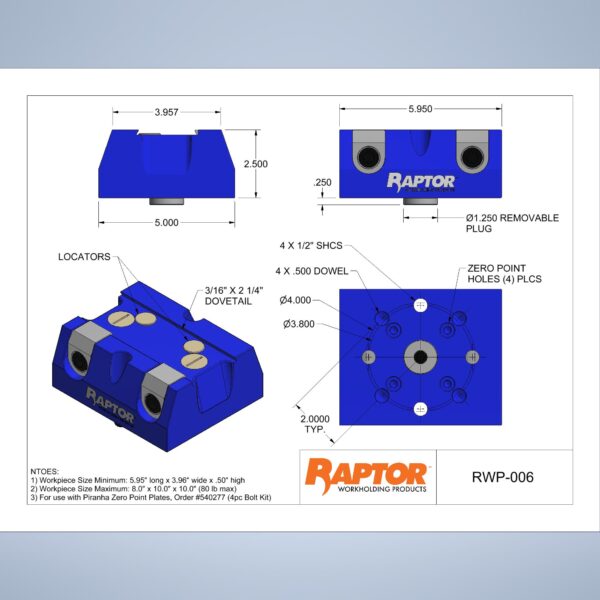

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 3/16″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. This part has been improved to have the ability to mount to Piranha Zero Point plates. See Key Dimension Drawing for details.
