Description

RWP-019SS

17-4 Stainless Steel 0.375″ Dovetail Fixture

Designed for small part production & modular applications. Multiple RWP-019SS fixtures can be placed in-line to hold long parts, which we refer to as a bridge system. Multi-fixture options: RWP-019-4X45T & RWP-019-4X90T

Workpiece Size Minimum: 1.25″ long x .750″ wide x .50″ high

Workpiece Size Maximum: 2.50″ cube (2 lb max)

Clamp Replacement Kit: RWP-KIT-305SQ (Clamp Material is 17-4 Stainless Steel)

Dovetail Width: 0.375″

Dovetail thickness: 0.125″

Fixture Dimensions: 2.5″ long x 1.00″ wide x 1.25″ high

Recommended Cutter: RWP-DC403U, RWP-DC404C, RWP-DC407C or RWP-DC408C

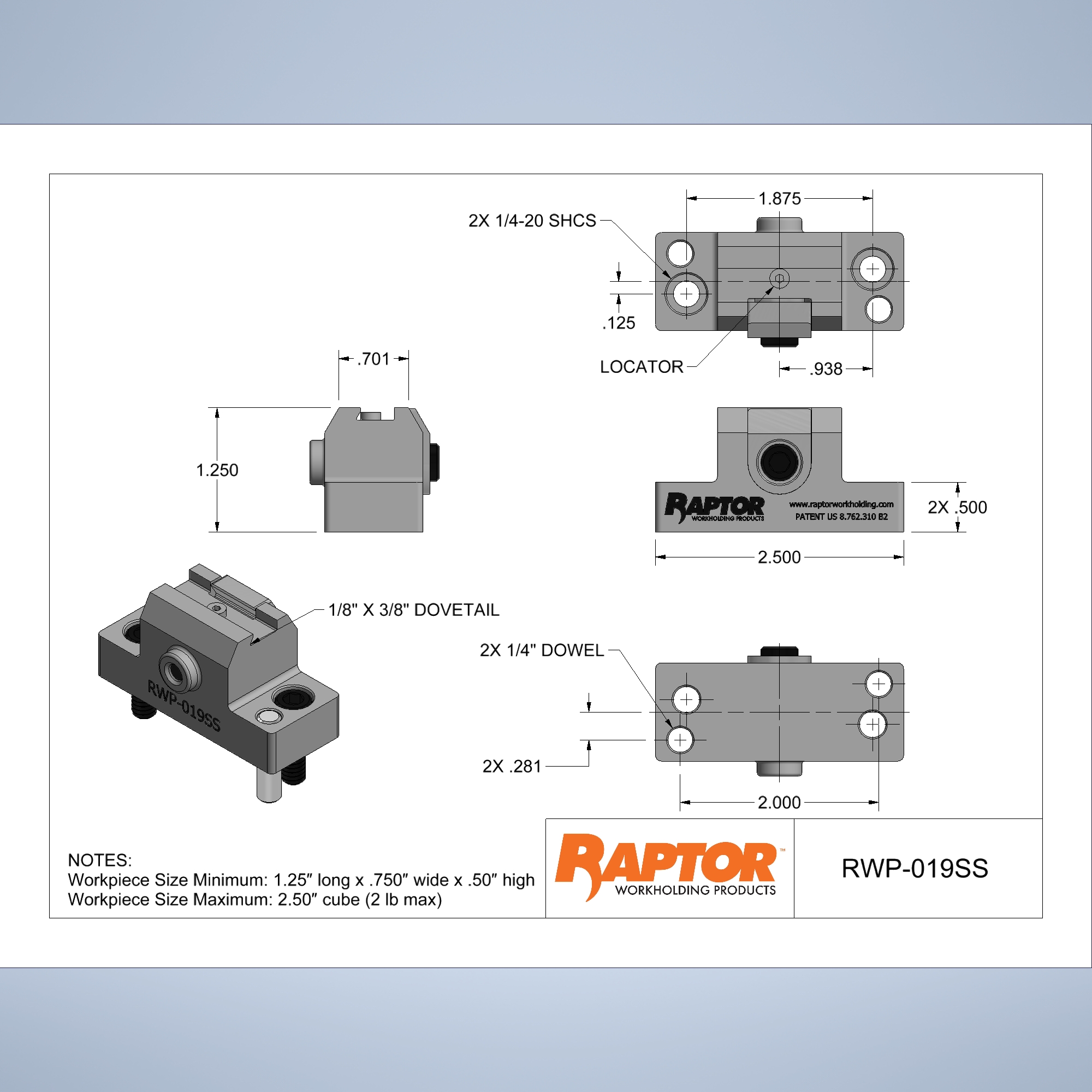

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. See Key Dimension Drawing for details.
