Description

RWP-023

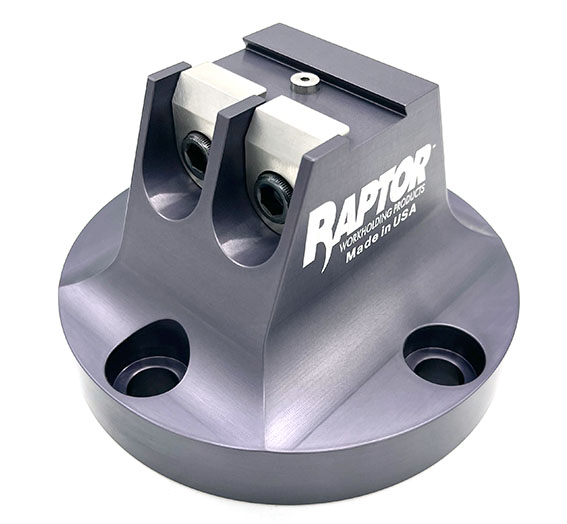

7075-T6511 Aluminum 0.75″″ Dovetail Fixture – Grid Pattern Mounting

Made for Tombstones or Grid Plates with a 2.0″ X 2.0″ Hole Pattern or 4.0 Bolt Circle – without a boss or plug. This fixture will not mount to Raptor Risers or adapters.

Workpiece Size Minimum: 2.00″ long x 1.75″ wide x .50″ high

Workpiece Size Maximum: 5.75″ cube (18 lb max)

Clamp Replacement Kit: RWP-KIT-302SQ (Clamp Material is 17-4 Stainless Steel)

Dovetail Width: 0.75″

Dovetail thickness: 0.125″

Fixture Diameter: 4.970″

Fixture Height: 3.0″

Bolt Circle Diameter: 4.000″

Piranha Zero-Point Adaptable: Yes (Order 4 pc kit # 540277)

Recommended Cutter: RWP-DC403U, RWP-DC404C, RWP-DC407C or RWP-DC408C

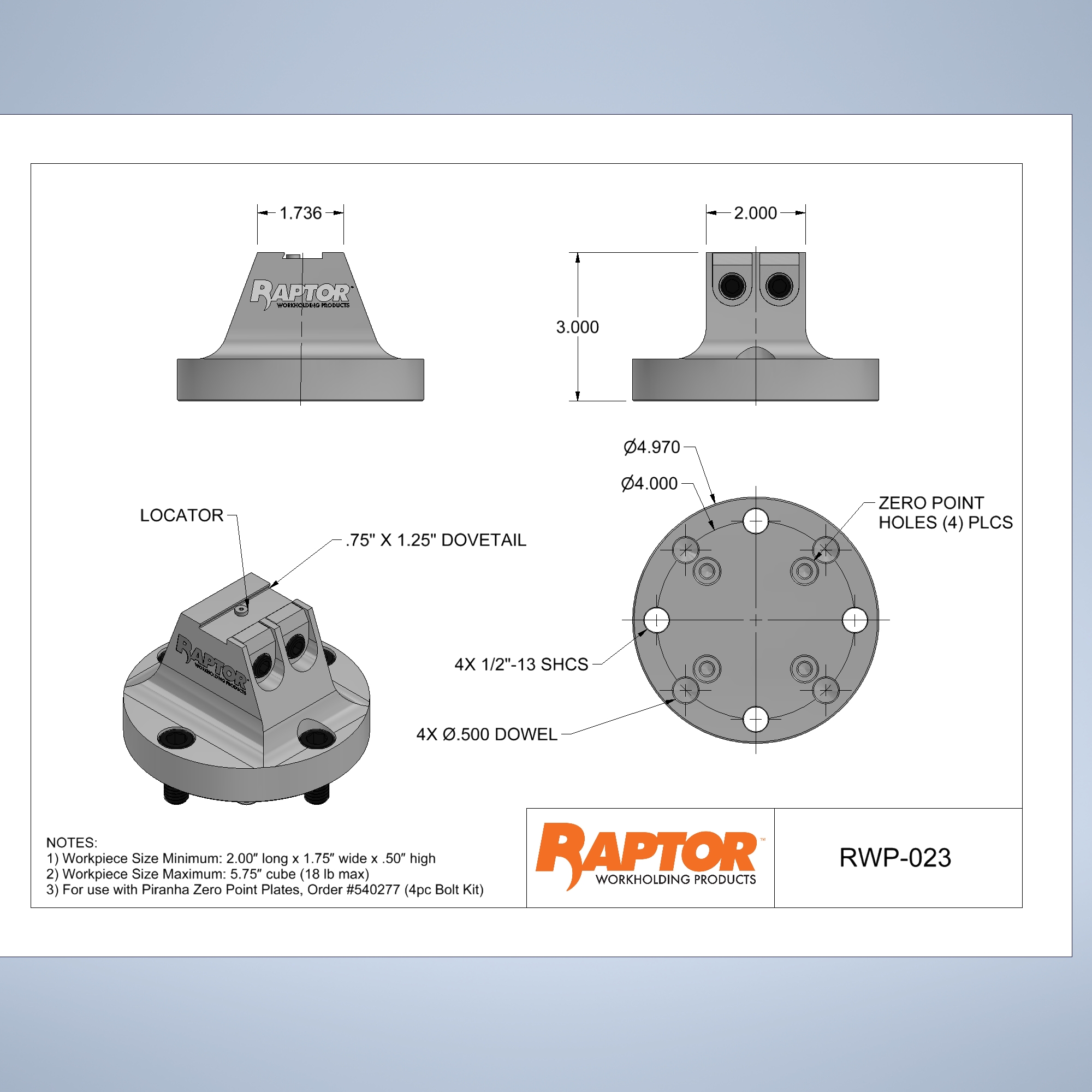

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8″ of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient. This part has been improved to have the ability to mount to Piranha Zero Point plates. See Key Dimension Drawing for details.
